Access Barriers



NICE WIDE

Electromechanical road barrier system for control of road access.

EASY TO INSTALL

Large front door for quick and easy access. The bar can be assembled either on the right or left. Easily removable reinforced gear motor support.

What is Wide?

24 Vdc gear motor, with built-in control unit, adjustable speed and anti-crush safety function. Two types of case available, galvanized steel or stainless steel (AISI 304) from 3 to 7 metres long.

More comfort and safety in programming and maintenance.

The same built-in control unit is used on all versions, and is installed in the bottom part of the barrier body. Large front door for quick and easy access. Easily-removable reinforced gear motor support.

Maximum anti-crush safety when both opening and closing; barrier body supports on the inside for minimum visual impact.



Electronically-adjustable speed for fast opening.

Sturdiness, reliability and easy installation

Elliptical section bar for lighter weight and higher wind-gust resistance; special profile for fast assembly of the accessories.



Optional pivot joint to protect the barrier in the event of collision.



The bar can be assembled either on the right or left.



Easy to balance, thanks to practical spring tension adjustment.

No blackouts: operation is guaranteed in the event of power outages by the PS234 backup battery installed inside the control unit. Release with triangular key protected against the weather.

Wide M

for 3m to 4m boom



with 3 Meter Boom options

  • Nice boom with red strip

  • Nice boom with red strip + indicator lights

  • Nice articulated boom with red strip

  • standard round boom

  • standard articulated round boom



with 4 Meter Boom options

  • Nice boom with red strip

  • Nice boom with red strip + indicator lights

  • standard round boom

  • standard articulated round boom

Wide L

for 5m to 7m boom



with 5 Meter Boom

  • standard round boom

with 5 Meter Boom options

  • Nice boom with red strip

  • Nice boom with red strip + indicator lights



with 6 Meter Boom options

  • Nice boom with red strip

  • Nice boom with red strip + indicator lights

Other Specifications

NICE L/M/S BAR

Electromechanical road barrier system for control of road access.

SAFE

Integrable flashing or traffic light. Night functioning for on-site lighting. Vandal-proof thanks to the tough aluminum case.

High performing, reliable and durable. Elegant, streamlined design. Carefully selected materials.

Greater convenience, safety at all times.

Solemyo System

Solemyo solar power kit for the automation of gates, garage doors and barriers even a long way from electricity supplies, with no need for expensive, unsightly trench digging.

Opera System

For user-friendly, safe control, programming and monitoring of automation systems, with impressive time savings.

BlueBUS

The BlueBUS system allows connection of all system devices using just two wires. Quick installation and easy updating at any time!

Source: Nice website

L-BAR
M-BAR
S-BAR


MTPI Barrier

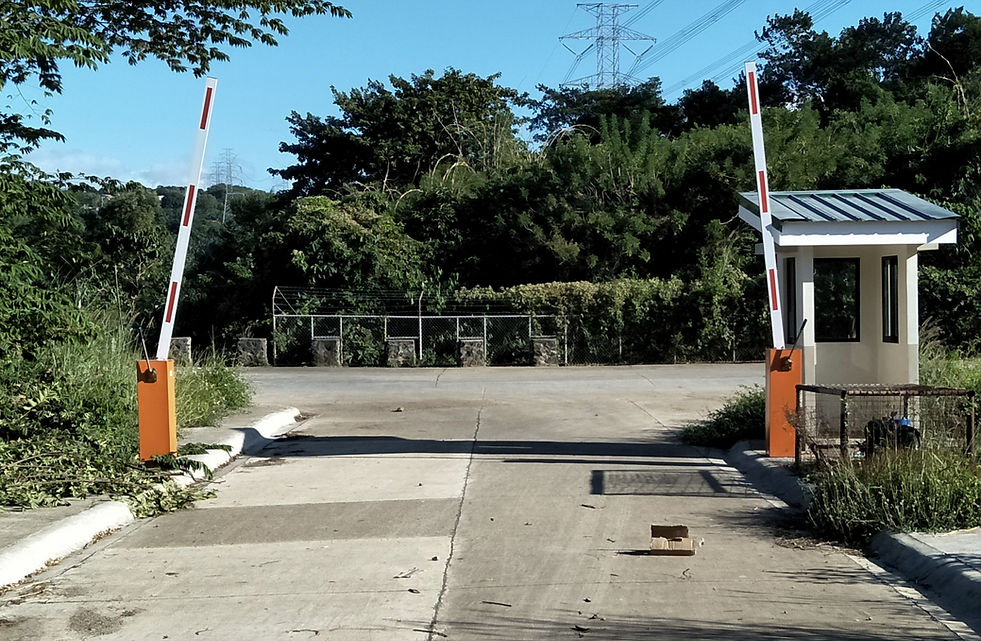

Manual access barrier system for control of road access

With 3-6 meter boom



Lever-actuated, spring-loaded access barrier (no counter-weight).



For sturdier casing and stronger resistance to weathering, the housing is made of acrylic coated Ga.14, G.I. sheet with dual epoxy primer coats for extra protection (gray & zinc chromate).



The housing cover is secured by a lock and key to prevent tampering with the unit.



The boom is made of powder-coated tubular aluminum bar and has reflective decals for increased visibility.



The barrier is operated by its stainless steel hand lever fitted with a rubber grip.

The boom stops at approximately 75 degrees  (raised position),  and horizontally for the closed position.



A lock is provided in the boom hub and can be locked at the raised position whenever desired.



The required force to operate the barrier is uniform at any angle, unlike the conventional counter-weight type of barrier.

Other Specifications​

With 3 meter boom​

Standard booms

rectangular profile

rectangular profile - articulated

round profile = 2-1/2" dia.

round profile = 3" dia.

With 4 meter boom

Standard booms

rectangular profile

rectangular profile - articulated

round profile = 2-1/2" dia.

round profile = 3" dia.

With 5 meter boom

Standard booms

rectangular profile

round profile = 2-1/2" dia.



With 5.5 meter boom

round profile = 2-1/2" dia.



With 6 meter boom

round profile = 2-1/2" dia.
